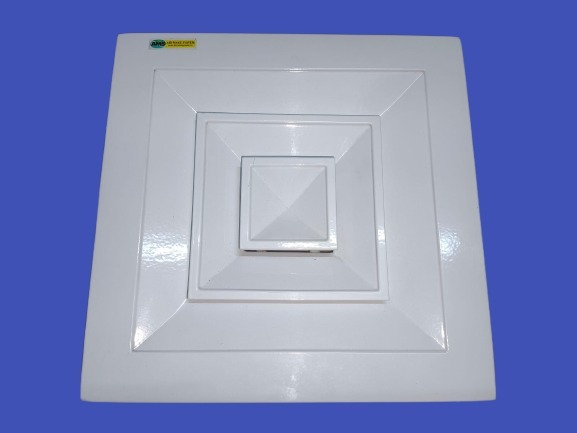

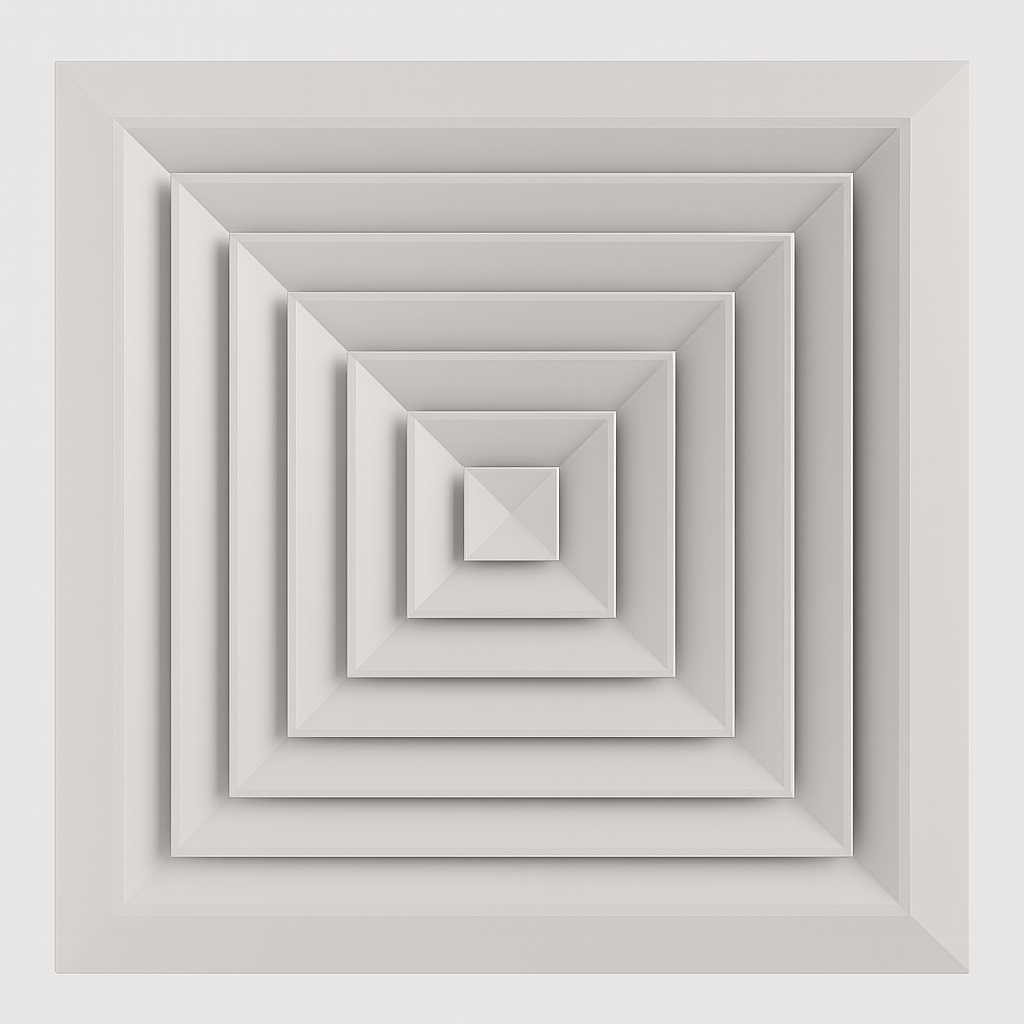

Square Ceiling Diffuser

The Square Ceiling Diffuser from Air Make System is a high-performance ceiling air diffuser engineered to deliver uniform, comfortable airflow in modern HVAC systems. Designed for both supply air and return air applications, this diffuser blends efficient air distribution with refined ceiling aesthetics, making it the preferred choice for architects, MEP consultants, contractors, and facility owners. Whether you are equipping offices, malls, hospitals, hotels, or residential apartments, this HVAC ceiling diffuser provides smooth throw patterns, low noise levels, and dependable long-term performance.

What makes it different?

Unlike generic grilles, the Square Ceiling Diffuser is precision-formed to guide air evenly in all directions. The face design reduces turbulence, improves mixing of conditioned air with room air, and minimizes hot or cold spots. Its clean square geometry sits flush with the ceiling and suits both T-bar (lay-in) and concealed mounting systems. With removable cores and optional dampers, maintenance and balancing are simple and fast.

Key Features & Benefits

• Uniform 4-Way, 3-Way, 2-Way or 1-Way Air Patterns: Select the throw pattern that suits your room geometry and duct layout to achieve consistent coverage and comfort.

• Robust Construction: Manufactured from premium extruded aluminum or galvanized steel (GI) for rigidity, corrosion resistance, and longevity in demanding environments.

• Powder-Coated Finish: Supplied in standard RAL9016/white; custom colors available to match project interiors and designer ceilings.

• Low Noise, Low Pressure Drop: Aerodynamically profiled blades reduce resistance and sound levels while maintaining effective airflow rates.

• Multiple Neck Sizes: Standard and custom neck sizes ensure easy connection to round or rectangular ducts and plenum boxes.

• Removable Core: The central core can be lifted out for effortless cleaning and access to dampers or accessories installed behind the face.

• Optional Volume Control Damper (VCD): Factory-fitted opposed-blade or butterfly dampers allow precise air balancing on site.

• Compatible with Filter Media: Return-air versions can be equipped with filter media on request for basic dust control.

• Fast Installation: Lightweight design makes handling simple on ladders and scissor lifts; fixing holes and clips are provided as per site requirement.

• Custom Engineering: Face pattern, core style, neck size, flange depth, and finish can be tailored to suit project specifications.

Construction & Finish

The diffuser frame and blades are formed from high-quality aluminum profiles with tight tolerances to avoid rattling and vibration. Corners are miter-cut for a neat visual line. Surfaces are chemically treated and powder-coated to improve corrosion resistance and provide a durable, easy-to-clean finish. Where required, galvanized steel options are available for heavy-duty applications. All fasteners and accessories are selected to withstand typical HVAC operating conditions.

Performance & Air Distribution

Proper air diffusion is essential for occupant comfort and energy efficiency. The Square Supply Diffuser is engineered to deliver a balanced air pattern with excellent induction, ensuring rapid mixing of supply air with room air. This reduces stratification and helps the HVAC system maintain set-point temperatures efficiently. The diffuser’s geometry supports both high-induction low-velocity operation for comfort zones and higher-velocity throws for large, open areas. Optional plenum boxes ensure stable inlet conditions and further reduce noise.

Typical Applications

• Commercial: Corporate offices, open-plan workspaces, meeting rooms, retail stores, restaurants, and showrooms.

• Healthcare: Hospitals, clinics, laboratories, and diagnostic centers where clean airflow and easy cleaning are important.

• Education: Schools, colleges, training centers, and libraries with variable occupancy patterns.

• Hospitality: Hotels, banquet halls, lounges, and lobbies demanding quiet, aesthetically pleasing air outlets.

• Residential & Mixed-Use: Premium apartments, villas, clubhouses, and community facilities.

• Industrial & Institutional: Control rooms, administrative blocks, light-manufacturing areas, and warehouses with conditioned zones.

Options & Accessories

• Opposed-Blade Damper (OBD) / Butterfly Damper for on-site balancing.

• Insulated or uninsulated plenum box with side or top entry spigot.

• Return Air Diffuser configuration with perforated or open core and optional filter.

• Anti-smudge ring to minimize ceiling streaking in high-velocity applications.

• Custom labeling & packaging for project sequencing and easy site identification.

Installation & Maintenance

The diffuser is suitable for lay-in (600×600) modular ceilings and gypsum/concealed ceilings using screw fix or spring clips. For best results, connect to a plenum box or flexible duct with adequate straight length before the neck to stabilize airflow. The removable core allows quick access for cleaning and damper adjustment. Routine maintenance involves wiping surfaces with a soft cloth and checking damper positions during seasonal balancing.

Why Choose Air Make System?

Air Make System is a trusted Indian manufacturer of HVAC air distribution products with a strong focus on engineering accuracy, repeatable quality, and on-time delivery. Our facilities employ CNC fabrication, rigorous QA checks, and project-friendly packing. We support consultants and contractors with submittals, data sheets, and customization to meet unique project needs. When you choose our Square Ceiling Diffuser, you get a product that performs reliably, looks elegant, and is backed by responsive after-sales support.

Conclusion

For projects that demand efficient airflow, low noise, and a premium architectural finish, the Square Ceiling Diffuser is the ideal choice. It integrates seamlessly with modern ceilings, balances comfort with energy efficiency, and simplifies installation and maintenance. Upgrade your ventilation system with Air Make System’s HVAC ceiling diffuser range and experience dependable performance on every project.
