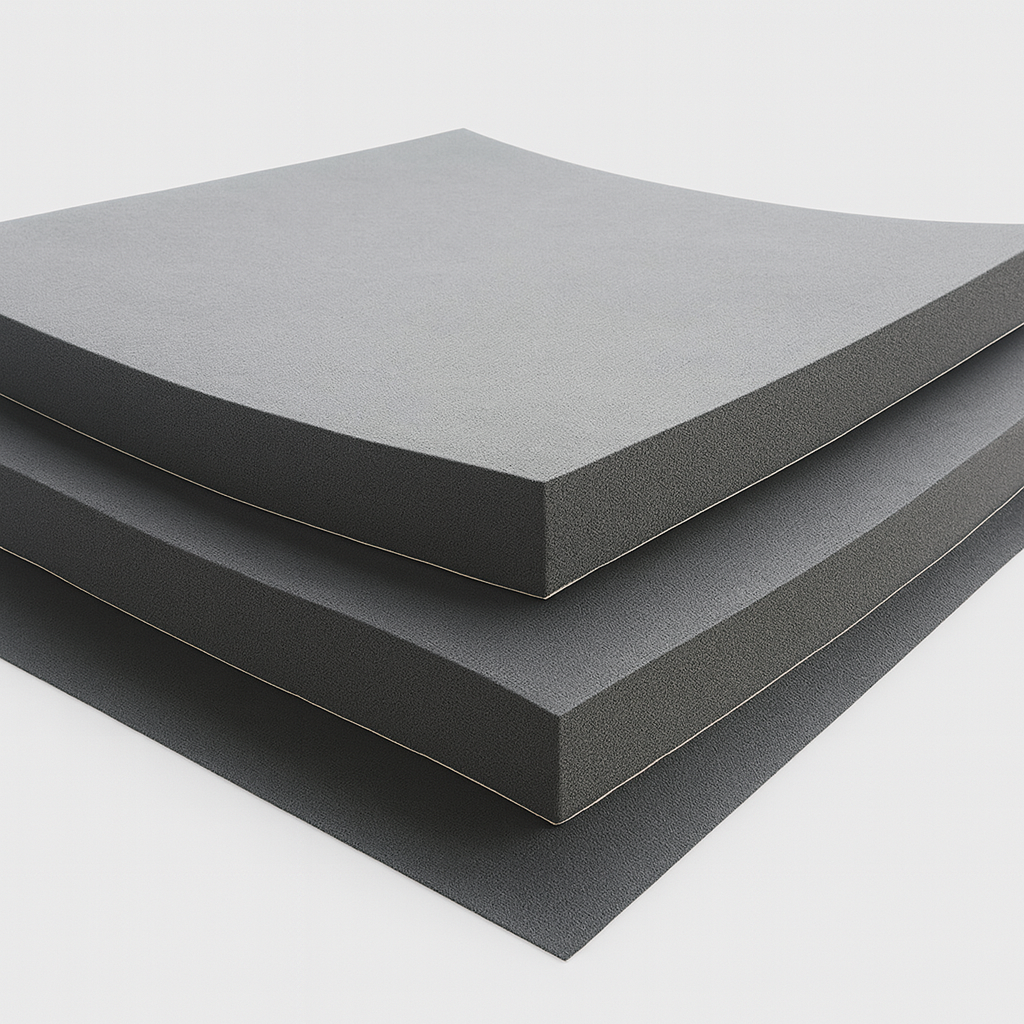

Product Overview:
Nitrile Rubber Insulation is a flexible, closed-cell, synthetic rubber material specially designed for thermal insulation in HVAC systems. It provides excellent resistance to heat transfer, moisture penetration, and condensation, making it ideal for both chilled water and hot water pipe insulation.
With its low thermal conductivity, high moisture resistance, and fire-retardant properties, nitrile insulation ensures energy efficiency and long-lasting performance in commercial, industrial, and residential installations.
Key Features:
-
❄️ Excellent thermal insulation (low K-value)
-
💧 Moisture & vapor resistant (closed-cell structure)
-
🔥 Fire-retardant and self-extinguishing
-
🧽 Easy to cut, shape & install
-
🛠️ Suitable for duct, pipe, tank, and vessel insulation
-
🌿 Environmentally friendly & CFC-free
Applications:
-
Chilled Water Pipe Insulation
-
Ducting Insulation (supply & return)
-
AHU & VRF Line Sets
-
Refrigeration Systems
-
Hot & Cold Water Piping
Technical Specifications (Optional):
-
Material: Nitrile Butadiene Rubber (NBR)
-
Density: ~40–60 kg/m³
-
Thermal Conductivity: ≤ 0.035 W/m·K (at 0°C)
-
Temperature Range: -40°C to +105°C
-
Fire Performance: Class 1 (BS 476 Part 7) / FM Approved
-
Available Forms: Tubes, Sheets, Rolls
-
Thickness: 6mm, 9mm, 13mm, 19mm, 25mm etc.
