Product Overview:

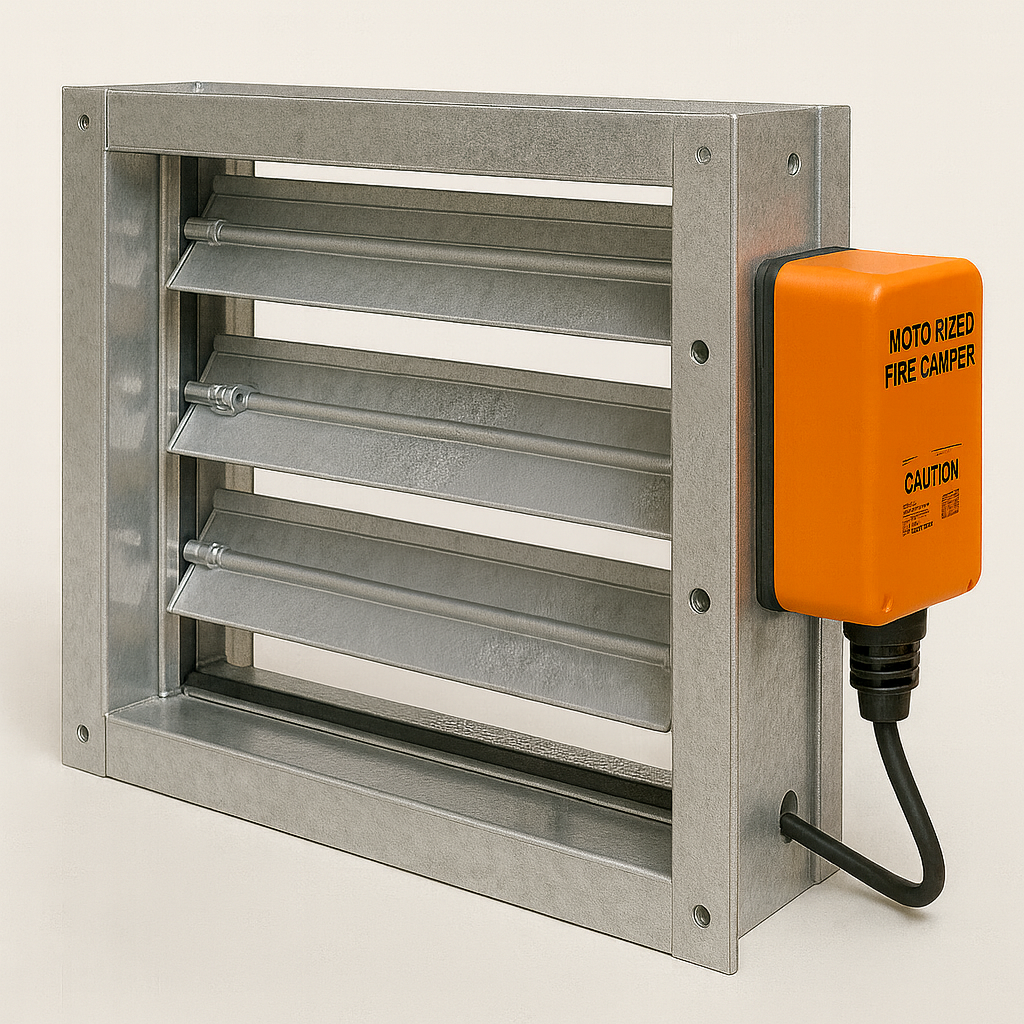

The Motorized Fire Damper (MFD) is a critical safety device designed to automatically shut off airflow in HVAC duct systems during a fire event. Equipped with an electric actuator, it ensures rapid closure upon signal reception from fire detection systems or Building Management Systems (BMS), helping to prevent the spread of fire and smoke through ductwork.
Our fire dampers comply with international fire safety standards and are available in both rectangular and circular shapes, with UL-rated or BS476-certified constructions.
Key Features:
-
🔥 Fire-rated construction (UL / BS standards)
-
⚡ Operated via electric actuator (24V/230V)
-
🧠 BMS-compatible control
-
⛔ Auto shut-off on signal or temperature rise
-
🔁 Reopen/reset option post safety clearance
-
🧱 Suitable for wall/floor/ceiling installations
Typical Applications:
-
Hospitals
-
Hotels & Malls
-
Commercial Complexes
-
Industrial Plants
-
Airports, Metro Stations
-
Cleanrooms & Server Rooms
Construction Options:
-
Frame & Blades: Galvanized Steel / Stainless Steel
-
Fire Rating: 60 min / 90 min / 120 min
-
Seal: Intumescent / Blade Edge Seal for smoke control
-
Sizes: Customizable to duct dimensions
Actuation & Controls:
-
Electric Motor (Spring Return or Non-Spring)
-
Thermal Sensor / Smoke Detector Integration
-
Manual Reset / Auto Reset
-
Indicator for Open/Closed status
-
Signal feedback to fire panel or BMS
