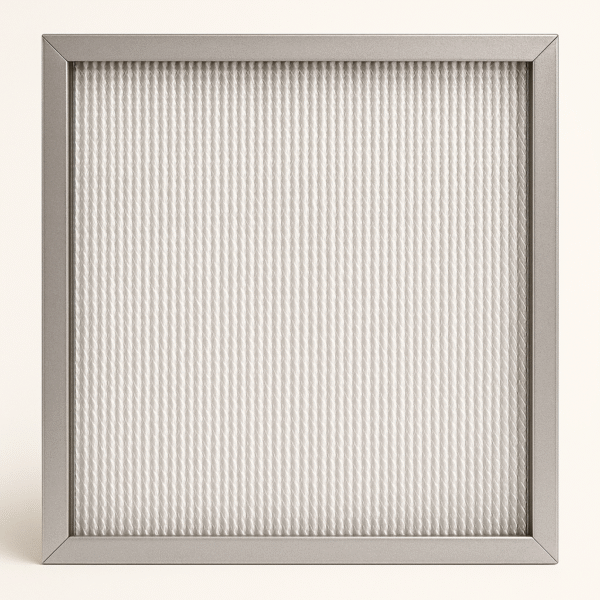

HEPA Filter
High-efficiency HEPA Filter with 99.97% filtration at 0.3 microns—ideal for cleanroom and hospital applications.
Description
Product Overview:
HEPA (High-Efficiency Particulate Air) Filters are designed to capture 99.97% of airborne particles that are 0.3 microns or larger, making them ideal for cleanroom and critical environment applications. These filters are widely used where the highest level of air purification is essential.
Constructed using micro-glass fiber media and rigid aluminum or G.I. casing, HEPA filters ensure minimal pressure drop while offering superior efficiency and long service life.
Key Features:
-
🔬 Filtration Efficiency: 99.97% at 0.3 microns (H13/H14)
-
💨 Low initial resistance
-
🔧 Rigid and durable construction
-
🔁 Leak-tested for guaranteed performance
-
📐 Available in various dimensions and thicknesses
-
🧼 Compatible with high-velocity airflows
Applications:
-
Clean Rooms
-
Hospitals & Operation Theaters
-
Pharmaceuticals & Biotechnology Labs
-
Semiconductor Manufacturing
-
Food & Beverage Processing
-
HVAC Systems in Sensitive Environments
Technical Specifications (Optional):
-
Efficiency: H13 / H14 (EN 1822)
-
Media: Micro-glass fiber
-
Frame: Aluminium / G.I. / MDF
-
Separator: Hot melt / Aluminum
-
Sealant: Polyurethane
-
Gasket: Neoprene / EPDM
-
Thickness: 150mm / 292mm
-
Final Pressure Drop: Up to 500 Pa
